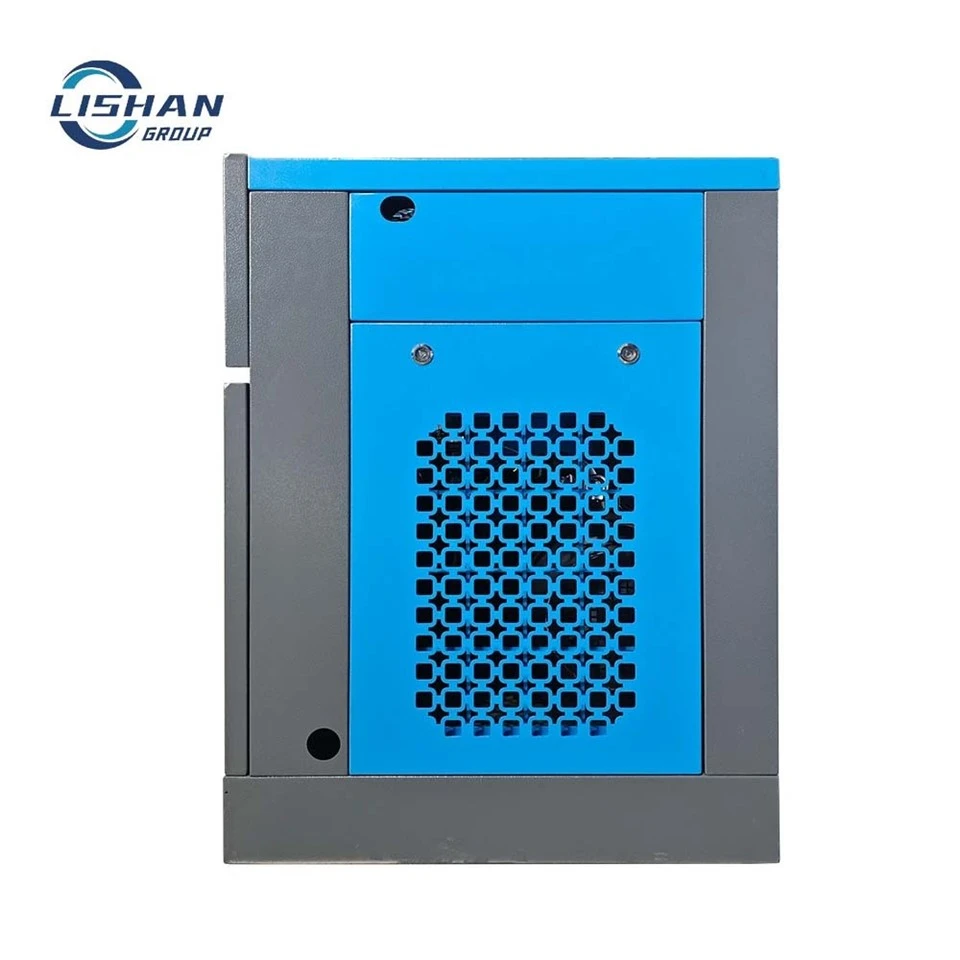

25HP VSD Compressor Machine Industrial
Products Description

Our 25HP VSD Compressor Machine Industrial is variable speed drive screw air compressor engineered for heavy‑duty continuous industrial operation. With high‑efficiency air‑end and intelligent VSD control system, it dynamically matches air output to real‑time consumption, bringing remarkable energy‑saving effect comparing with fixed‑speed models.
Low vibration, low noise design ensures steady long‑hour running. Closed integrated cabinet keeps internal components well‑protected, convenient for routine inspection and service. It supplies stable compressed air for metal processing, auto repair, printing, plastic processing and general factory workshops. Robust build quality lowers failure rate, helps enterprises save operating cost in long‑term production.
Technical parameter
| Model | Air Delivery(m3 /min) | Power (kw) |
Noise (Db) |
Outlet diameter | Dimension(mm) | Weight (kg) |
|||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.2Mpa | L | W | H | |||||
| 10A | 1.2 | 1.1 | 0.95 | 0.8 | 7.5 | 66 | G1/2 | 880 | 670 | 880 | 200 |
| 15A | 1.65 | 1.5 | 1.3 | 1.1 | 11 | 68 | G3/4 | 1080 | 750 | 1000 | 340 |
| 20A | 2.5 | 2.3 | 2.1 | 1.72 | 15 | 68 | G3/4 | 1080 | 750 | 1000 | 350 |
| 25A | 3.2 | 3.0 | 2.7 | 2.4 | 18.5 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 30A | 3.8 | 3.6 | 3.2 | 2.7 | 22 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 40A | 5.3 | 5.0 | 4.5 | 4.0 | 30 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 50A | 6.8 | 6.2 | 5.6 | 5.0 | 37 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 60A | 7.4 | 7.0 | 6.2 | 5.6 | 45 | 72 | G1-1/2 | 1400 | 1000 | 1290 | 750 |
| 75A | 10.0 | 9.6 | 8.5 | 7.6 | 55 | 72 | G2 | 1680 | 1100 | 1440 | 1000 |
| 100A | 13.4 | 12.6 | 11.2 | 10.0 | 75 | 72 | G2 | 1800 | 1230 | 1570 | 1200 |
| 125A | 16.2 | 15.0 | 13.8 | 12.3 | 90 | 72 | G2 | 1890 | 1230 | 1570 | 1250 |
| 150A | 21.0 | 19.8 | 17.4 | 14.8 | 110 | 72 | G2-1/2 | 2280 | 1470 | 1840 | 2000 |
| 175A | 24.5 | 23.2 | 20.5 | 17.4 | 132 | 75 | G2-1/2 | 2280 | 1470 | 1840 | 2100 |
| 200A | 28.7 | 27.6 | 24.6 | 21.5 | 160 | 75 | G2-1/2 | 2560 | 1580 | 1920 | 3500 |
| 250A | 32.0 | 30.4 | 27.4 | 24.8 | 185 | 75 | DN80 | 2560 | 1580 | 1920 | 3600 |
| 300A | 36.0 | 34.3 | 30.2 | 27.7 | 220 | 82 | DN80 | 3600 | 2100 | 2200 | 4800 |
| 350A | 42.0 | 40.5 | 38.2 | 34.5 | 250 | 82 | DN80 | 3600 | 2100 | 2200 | 4900 |
| 430A | 51.0 | 50.2 | 44.5 | 39.5 | 315 | 82 | DN80 | 3800 | 2200 | 2300 | 6000 |
| 480A | 64.0 | 61.0 | 56.5 | 49 | 355 | 84 | DN100 | 4600 | 2240 | 2260 | 6500 |
