Screw Air Compressor7.5kw
|
Machine Model |
Exhaust volume/working press (m³/min/Mpa) |
Power KW |
Noise db (A) |
Exhaust oil content |
Cooling method |
Overall dimensions |
Weight KG |
|||
|
10A |
1.2/0.7 |
1.1/0.8 |
0.95/1.0 |
0.8/1.25 |
7.5 |
66+2db |
≤3ppm |
Air Cooling |
850*650*800 |
190 |
|
15A |
1.7/0.7 |
1.5/0.8 |
1.4/1.0 |
1.2/1.25 |
11 |
68+2db |
1050*700*1000 |
300 |
||
|
20A |
2.4/0.7 |
2.3/0.8 |
2.0/1.0 |
1.7/1.25 |
15 |
68+2db |
1050*700*1000 |
300 |
||
|
25A |
3.1/0.7 |
2.9/0.8 |
2.7/1.0 |
2.2/1.25 |
18.5 |
69+2db |
1250*850*1100 |
450 |
||
|
30A |
3.8/0.7 |
3.6/0.8 |
3.2/1.0 |
2.9/1.25 |
22 |
69+2db |
1250*850*1100 |
450 |
||
|
40A |
5.2/0.7 |
5.0/0.8 |
4.3/1.0 |
3.7/1.25 |
30 |
69+2db |
1250*950*1200 |
650 |
||
|
50A |
6.4/0.7 |
6.3/0.8 |
5.7/1.0 |
5.1/1.25 |
37 |
70+2db |
1250*950*1200 |
650 |
||
|
60A |
8.0/0.7 |
7.7/0.8 |
7.0/1.0 |
5.8/1.25 |
45 |
72+2db |
1340*1000*1250 |
850 |
||
|
75A |
10/0.7 |
9.2/0.8 |
8.7/1.0 |
7.5/1.25 |
55 |
73+2db |
1340*1000*1250 |
1150 |
||
|
100A |
13.6/0.7 |
13.3/0.8 |
11.6/1.0 |
9.8/1.25 |
75 |
75+2db |
1340*1000*1250 |
1355 |
||
|
125A |
16.3/0.7 |
16.0/0.8 |
14.6/1.0 |
12.3/1.25 |
90 |
75+2db |
2085*1195*1500 |
1545 |
||
|
150A |
20.8/0.7 |
20.6/0.8 |
17.0/1.0 |
14.2/1.25 |
110 |
75+2db |
2430*1440*1760 |
1850 |
||
|
175A |
24.8/0.7 |
24.0/0.8 |
20.6/1.0 |
16.5/1.25 |
132 |
75+2db |
2430*1440*1760 |
1950 |
||
|
200A |
28.5/0.7 |
27.0/0.8 |
23.2/1.0 |
19.7/1.25 |
160 |
75+2db |
3560*1720*2050 |
2540 |
||
|
250A |
32.5/0.7 |
30.2/0.8 |
27.0/1.0 |
22.5/1.25 |
185 |
78+2db |
3560*1720*2050 |
2760 |
||
|
300A |
38.6/0.7 |
36.4/0.8 |
33.1/1.0 |
30.5/1.25 |
220 |
78+2db |
3560*1720*2050 |
3180 |
||
|
350A |
43.9/0.7 |
42.5/0.8 |
38.8/1.0 |
34.6/1.25 |
250 |
78+2db |
4130*1760*2100 |
5345 |
||
|
430A |
56.0/0.7 |
53.0/0.8 |
49.0/1.0 |
43.0/1.25 |
315 |
80+2db |
4500*2210*2450 |
7470 |
||
|
480A |
64.0/0.7 |
62.0/0.8 |
57.6/1.0 |
49.0/1.25 |
355 |
82+2db |
4500*2210*2450 |
7470 |
||
|
540A |
74.0/0.7 |
72.0/0.8 |
62.0/1.0 |
56.5/1.25 |
400 |
83+2db |
4500*2210*2450 |
8200 |
||
|
Exhaust volume/working press (m³/min/Mpa) |
Power KW |
Noise db (A) |
Exhaust oil content |
Cooling method |
Overall dimensions |
Weight KG |
||
|
1.1/0.8 |
0.95/1.0 |
0.8/1.25 |
7.5 |
66+2db |
≤3ppm |
Air Cooling |
850*650*800 |
190 |

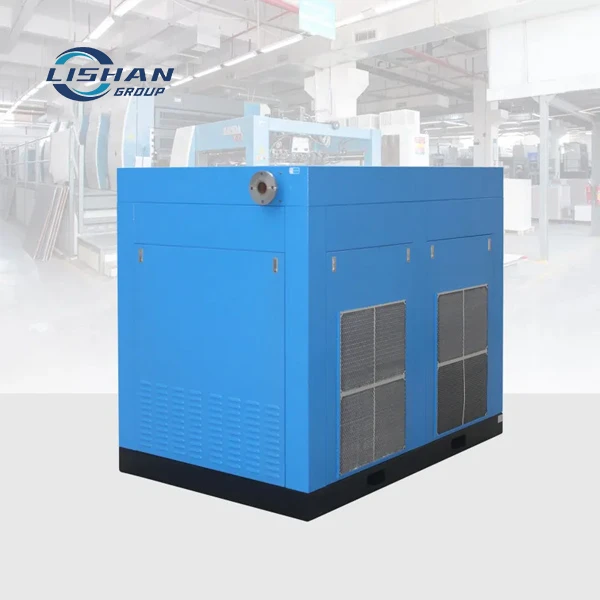

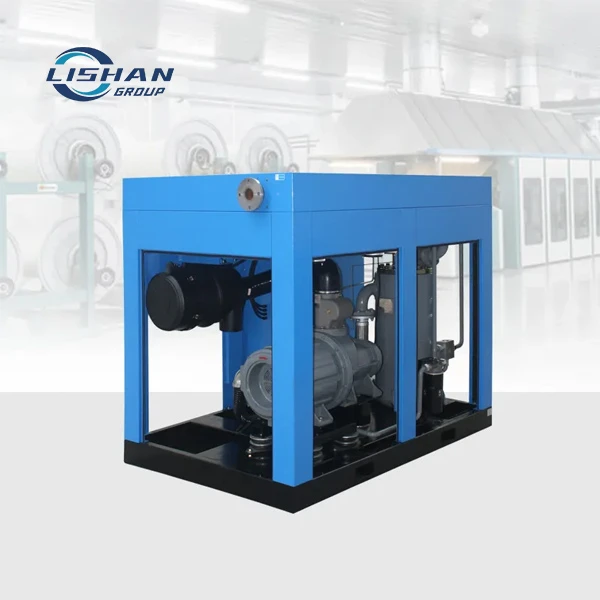

This 7.5KW screw air compressor is specially designed for medium and high-pressure industrial applications. It is equipped with a high-efficiency twin-screw main unit, capable of stably outputting an air volume of 1.1m³/min and a working pressure of 1.25Mpa. The core screw rotors are manufactured using high-precision grinding technology and, in combination with an intelligent variable frequency control system, can achieve pressure fluctuation control within ±0.05MPa, saving 15% to 25% energy compared to traditional models.

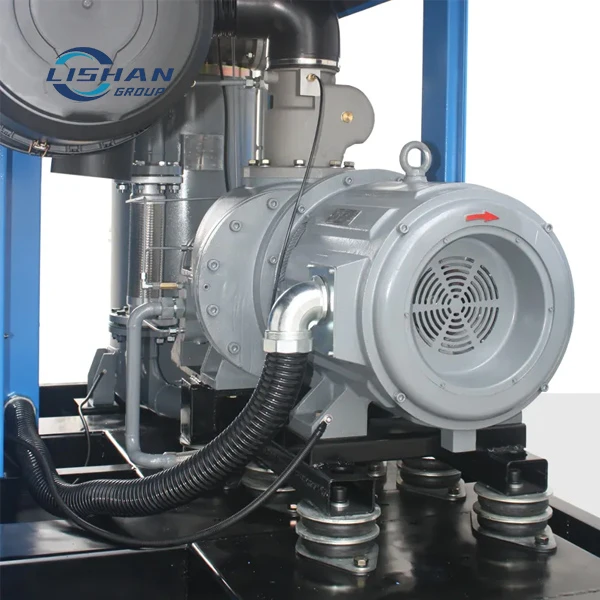

The equipment is equipped with a first-class energy efficiency permanent magnet motor, with an energy efficiency ratio of up to 11.0kW/(m³/min) under full load operation . At the same time, by optimizing the gear transmission structure and sound insulation design, the operating noise is controlled within 72dB. Its air-cooled cooling system uses aluminum plate-fin heat exchangers, which can quickly dissipate heat without the need for external water sources, making it suitable for water-scarce areas or high-temperature environments.

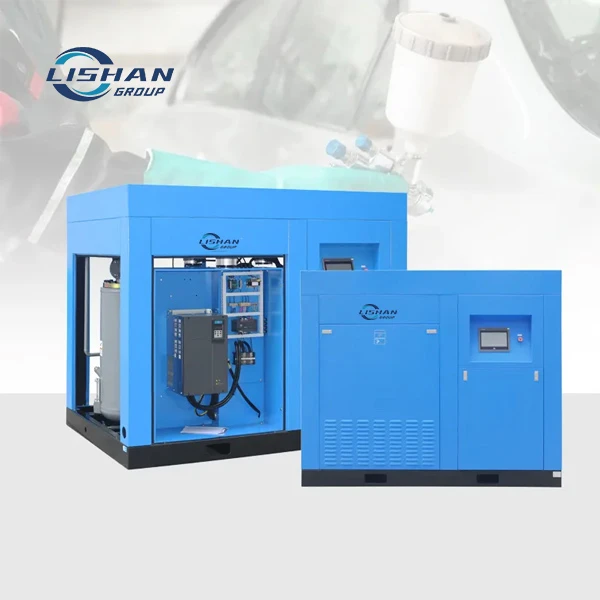

This model can be widely applied in laser cutting (1.0-1.5MPa requirements), automotive repair, food packaging, and other fields, especially suitable for air supply in the production lines of small and medium-sized enterprises. The equipment comes standard with G3/4 interfaces and an intelligent controller, supporting remote monitoring and fault early warning. The maintenance cycle is up to 800 hours, significantly reducing operation and maintenance costs. Its compact design and lightweight body of 200kg make it easy to install and move, and can be flexibly adapted to various industrial scenarios.
