Products Description

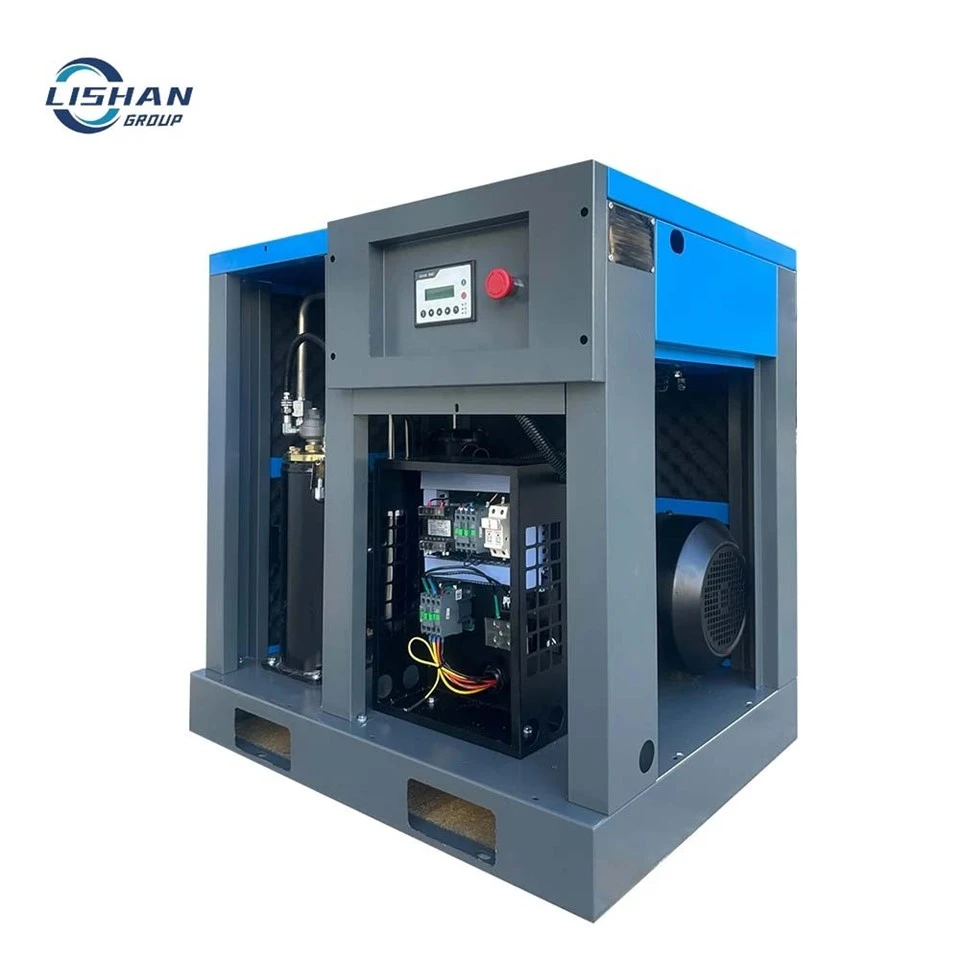

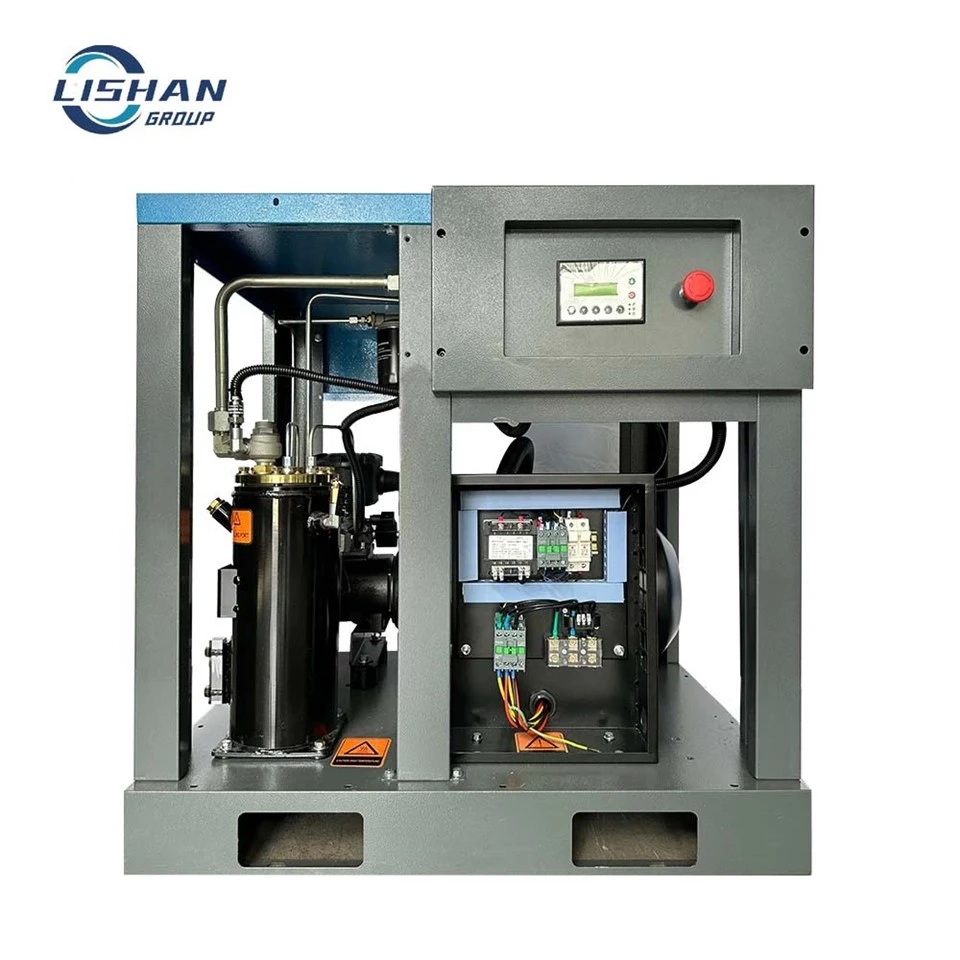

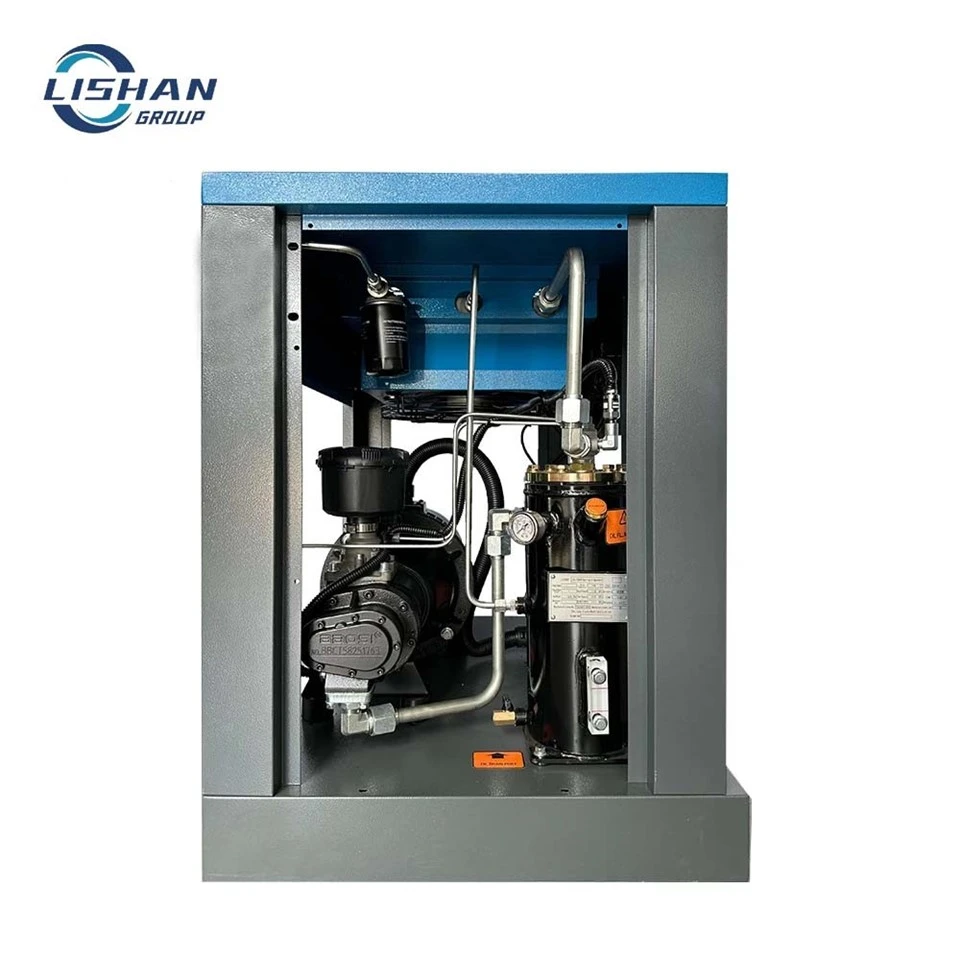

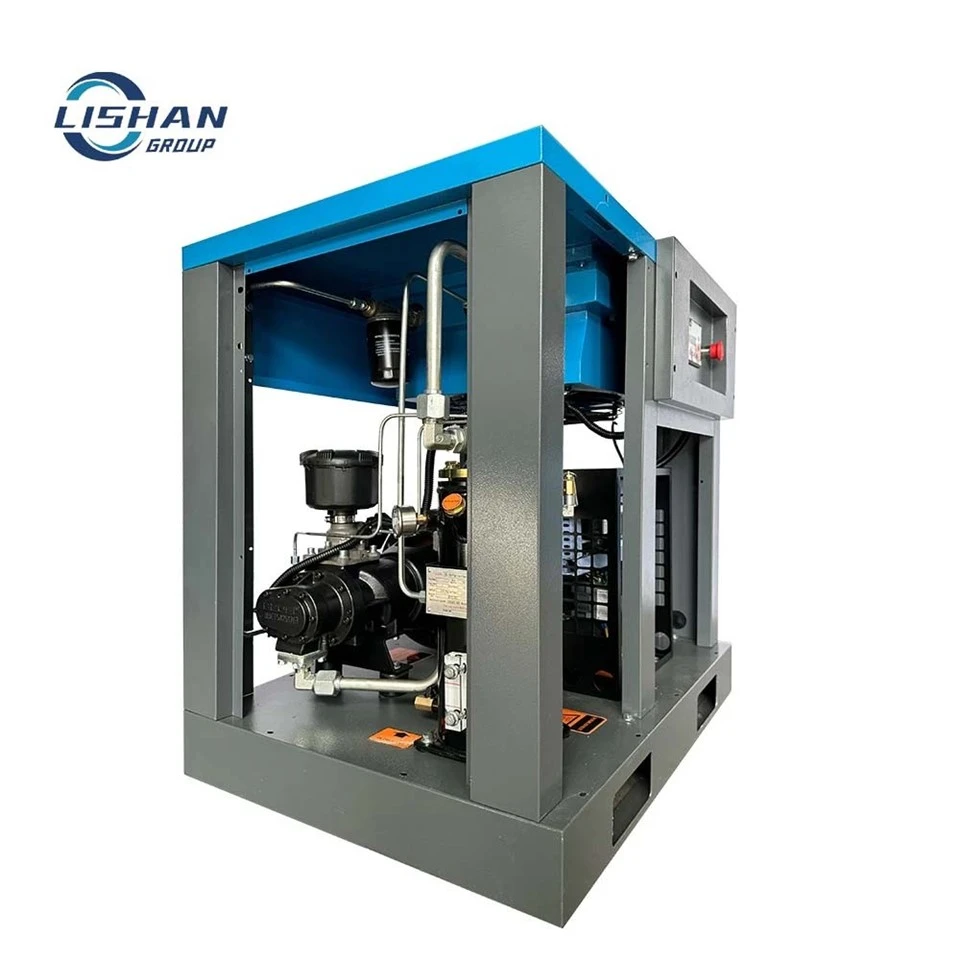

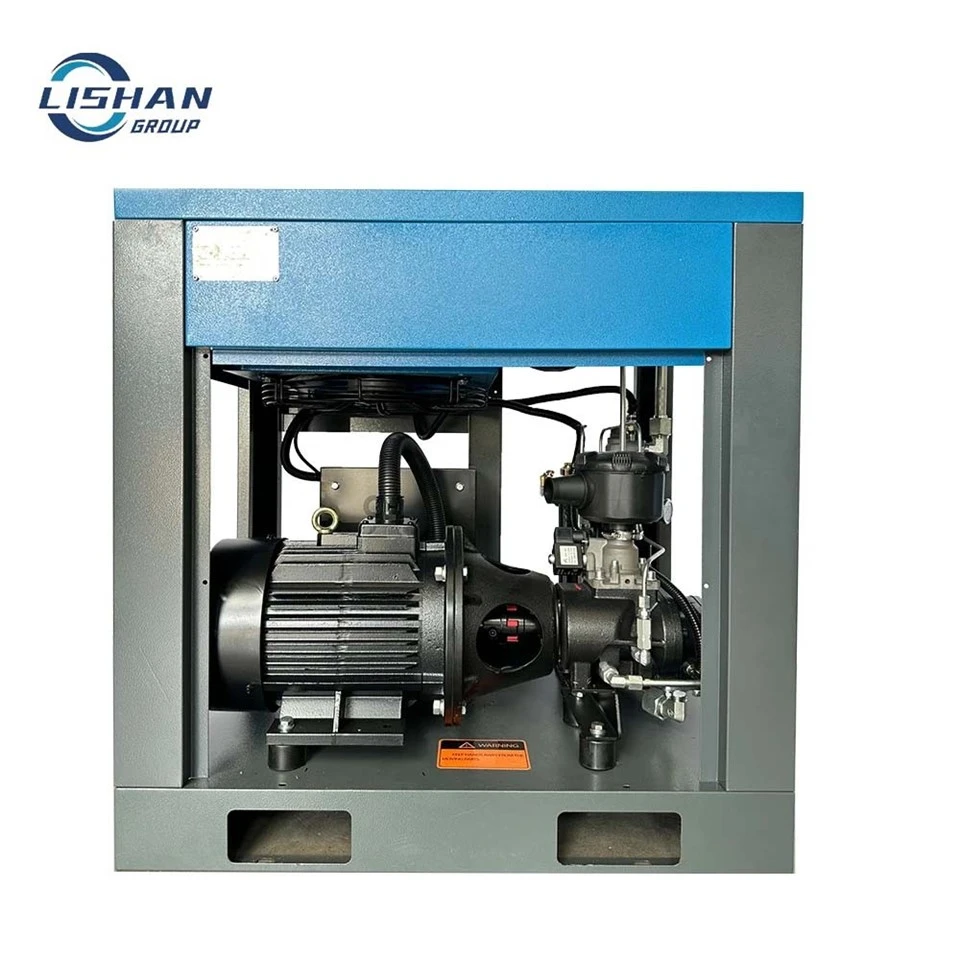

This 37kW PM VSD screw compressor delivers steady 8‑bar compressed air for industrial workshops. The permanent magnet motor plus variable‑frequency system automatically adjusts speed according to real‑time gas consumption, greatly cutting idle energy loss versus fixed‑speed compressors. Optimized screw rotor ensures reliable long‑hour operation with low vibration and noise. Intelligent control panel offers status monitoring and fault reminders. Compact modular design simplifies daily service. Widely used in machinery, metalworking, packaging and other industries.
Technical Parameters
| Model | Air Delivery(m3 /min) | Power (kw) |
Noise (Db) |
Outlet diameter | Dimension(mm) | Weight (kg) |
|||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.2Mpa | L | W | H | |||||
| 10A | 1.2 | 1.1 | 0.95 | 0.8 | 7.5 | 66 | G1/2 | 880 | 670 | 880 | 200 |
| 15A | 1.65 | 1.5 | 1.3 | 1.1 | 11 | 68 | G3/4 | 1080 | 750 | 1000 | 340 |
| 20A | 2.5 | 2.3 | 2.1 | 1.72 | 15 | 68 | G3/4 | 1080 | 750 | 1000 | 350 |
| 25A | 3.2 | 3.0 | 2.7 | 2.4 | 18.5 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 30A | 3.8 | 3.6 | 3.2 | 2.7 | 22 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 40A | 5.3 | 5.0 | 4.5 | 4.0 | 30 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 50A | 6.8 | 6.2 | 5.6 | 5.0 | 37 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 60A | 7.4 | 7.0 | 6.2 | 5.6 | 45 | 72 | G1-1/2 | 1400 | 1000 | 1290 | 750 |
| 75A | 10.0 | 9.6 | 8.5 | 7.6 | 55 | 72 | G2 | 1680 | 1100 | 1440 | 1000 |
| 100A | 13.4 | 12.6 | 11.2 | 10.0 | 75 | 72 | G2 | 1800 | 1230 | 1570 | 1200 |
| 125A | 16.2 | 15.0 | 13.8 | 12.3 | 90 | 72 | G2 | 1890 | 1230 | 1570 | 1250 |
| 150A | 21.0 | 19.8 | 17.4 | 14.8 | 110 | 72 | G2-1/2 | 2280 | 1470 | 1840 | 2000 |
| 175A | 24.5 | 23.2 | 20.5 | 17.4 | 132 | 75 | G2-1/2 | 2280 | 1470 | 1840 | 2100 |
| 200A | 28.7 | 27.6 | 24.6 | 21.5 | 160 | 75 | G2-1/2 | 2560 | 1580 | 1920 | 3500 |
| 250A | 32.0 | 30.4 | 27.4 | 24.8 | 185 | 75 | DN80 | 2560 | 1580 | 1920 | 3600 |
| 300A | 36.0 | 34.3 | 30.2 | 27.7 | 220 | 82 | DN80 | 3600 | 2100 | 2200 | 4800 |
| 350A | 42.0 | 40.5 | 38.2 | 34.5 | 250 | 82 | DN80 | 3600 | 2100 | 2200 | 4900 |
| 430A | 51.0 | 50.2 | 44.5 | 39.5 | 315 | 82 | DN80 | 3800 | 2200 | 2300 | 6000 |
| 480A | 64.0 | 61.0 | 56.5 | 49 | 355 | 84 | DN100 | 4600 | 2240 | 2260 | 6500 |
