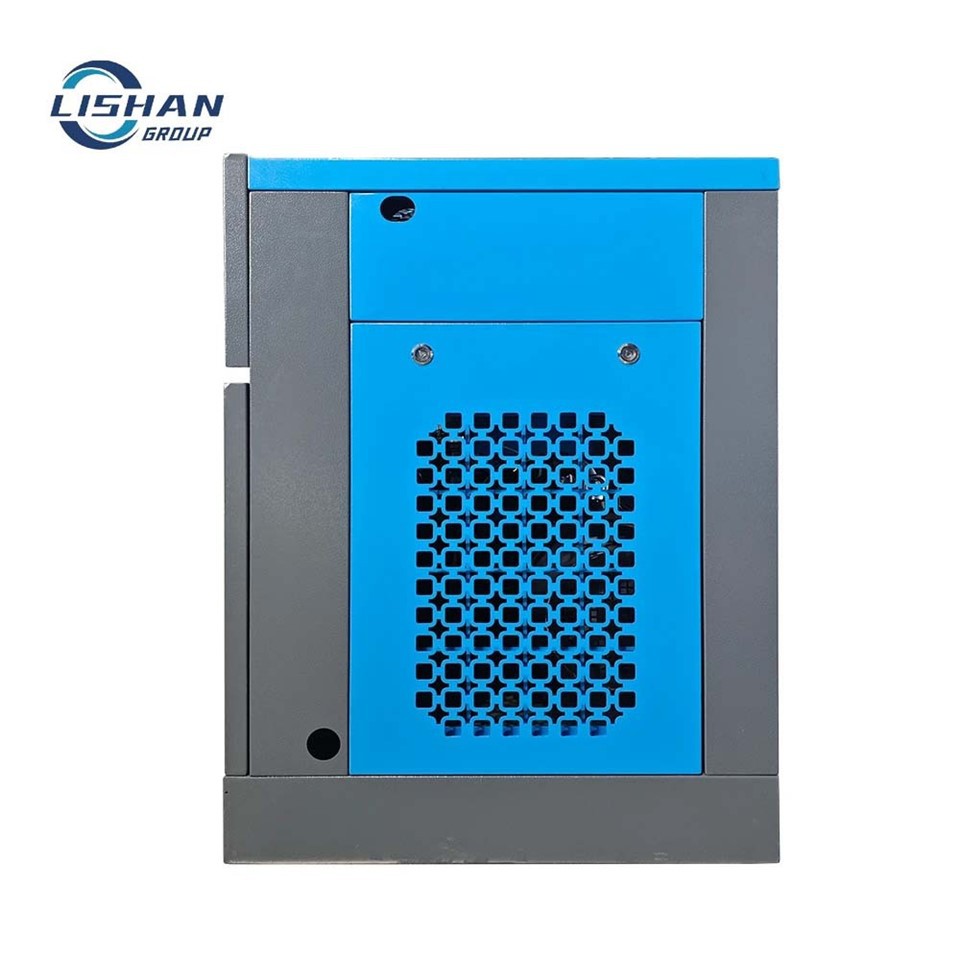

30 HP Variable Speed Inverter Air Screw Compressor
Products Description
This 30HP variable frequency drive (VFD) screw air compressor is engineered exclusively for laser cutting systems, delivering stable 16 bar clean, dry compressed air to meet the precision demands of high-end sheet metal processing.
Adopting a permanent magnet synchronous motor (PMSM) and intelligent frequency conversion control, it dynamically adjusts air output according to real-time cutting loads, achieving up to 35% energy savings compared with fixed-speed compressors.
Features an integrated high-precision filtration system that effectively removes oil and particulate matter, safeguarding laser focusing lenses from contamination and ensuring consistent cutting quality without dross or burrs.
Designed for low maintenance operation, the premium twin-screw host boasts a long service life with minimal wear, while the compact structure simplifies on-site installation and integration into laser production lines.
Ideal for mid-to-high power laser cutters (6KW+), it maintains stable pressure under varying processing conditions, making it the core air supply solution for professional sheet metal fabrication, automotive parts manufacturing, and aerospace component processing.
FAQ
Q: Do you support international shipping?
A: Yes, we ship globally via sea, air, and land freight. Our team can assist with export documentation, customs declarations, and logistics coordination to ensure smooth delivery to your port or warehouse.
Q: What warranty do you offer?
A: We offer a standard 1-year warranty on all new products, covering manufacturing defects. Extended warranty options are available for customers requiring additional coverage.
Q: How can I reach your after-sales support team?
A: Our technical support team is available via email, phone, and video call. Please keep your order number and product serial number ready when contacting us for faster assistance.
Products Tarameter
| Model | Air Delivery(m3 /min) | Power (kw) |
Noise (Db) |
Outlet diameter | Dimension(mm) | Weight (kg) |
|||||
| 0.7Mpa | 0.8Mpa | 1.0Mpa | 1.2Mpa | L | W | H | |||||
| 10A | 1.2 | 1.1 | 0.95 | 0.8 | 7.5 | 66 | G1/2 | 880 | 670 | 880 | 200 |
| 15A | 1.65 | 1.5 | 1.3 | 1.1 | 11 | 68 | G3/4 | 1080 | 750 | 1000 | 340 |
| 20A | 2.5 | 2.3 | 2.1 | 1.72 | 15 | 68 | G3/4 | 1080 | 750 | 1000 | 350 |
| 25A | 3.2 | 3.0 | 2.7 | 2.4 | 18.5 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 30A | 3.8 | 3.6 | 3.2 | 2.7 | 22 | 68 | G1 | 1280 | 850 | 1160 | 500 |
| 40A | 5.3 | 5.0 | 4.5 | 4.0 | 30 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 50A | 6.8 | 6.2 | 5.6 | 5.0 | 37 | 69 | G1-1/2 | 1400 | 1000 | 1290 | 650 |
| 60A | 7.4 | 7.0 | 6.2 | 5.6 | 45 | 72 | G1-1/2 | 1400 | 1000 | 1290 | 750 |
| 75A | 10.0 | 9.6 | 8.5 | 7.6 | 55 | 72 | G2 | 1680 | 1100 | 1440 | 1000 |
| 100A | 13.4 | 12.6 | 11.2 | 10.0 | 75 | 72 | G2 | 1800 | 1230 | 1570 | 1200 |
| 125A | 16.2 | 15.0 | 13.8 | 12.3 | 90 | 72 | G2 | 1890 | 1230 | 1570 | 1250 |
| 150A | 21.0 | 19.8 | 17.4 | 14.8 | 110 | 72 | G2-1/2 | 2280 | 1470 | 1840 | 2000 |
| 175A | 24.5 | 23.2 | 20.5 | 17.4 | 132 | 75 | G2-1/2 | 2280 | 1470 | 1840 | 2100 |
| 200A | 28.7 | 27.6 | 24.6 | 21.5 | 160 | 75 | G2-1/2 | 2560 | 1580 | 1920 | 3500 |
| 250A | 32.0 | 30.4 | 27.4 | 24.8 | 185 | 75 | DN80 | 2560 | 1580 | 1920 | 3600 |
| 300A | 36.0 | 34.3 | 30.2 | 27.7 | 220 | 82 | DN80 | 3600 | 2100 | 2200 | 4800 |
| 350A | 42.0 | 40.5 | 38.2 | 34.5 | 250 | 82 | DN80 | 3600 | 2100 | 2200 | 4900 |
| 430A | 51.0 | 50.2 | 44.5 | 39.5 | 315 | 82 | DN80 | 3800 | 2200 | 2300 | 6000 |
| 480A | 64.0 | 61.0 | 56.5 | 49 | 355 | 84 | DN100 | 4600 | 2240 | 2260 | 6500 |
