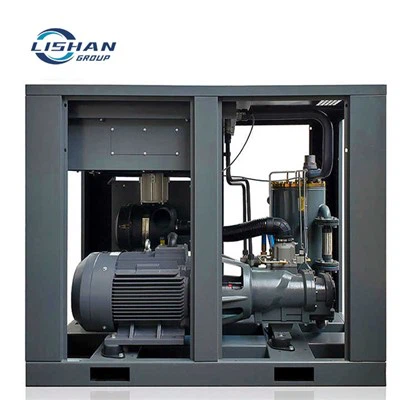

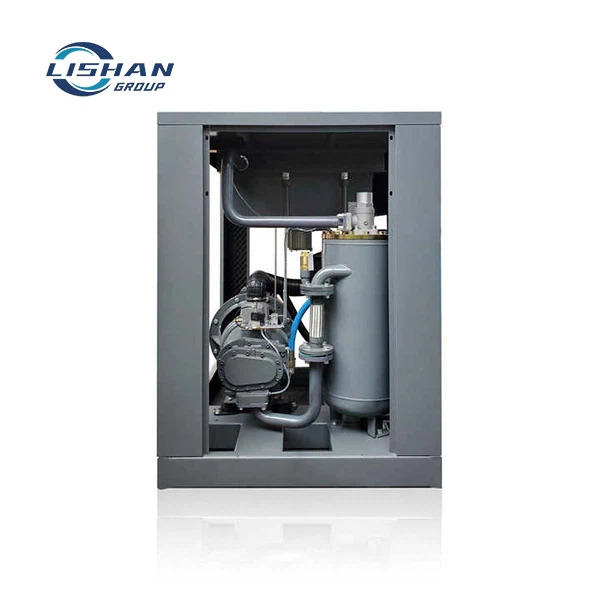

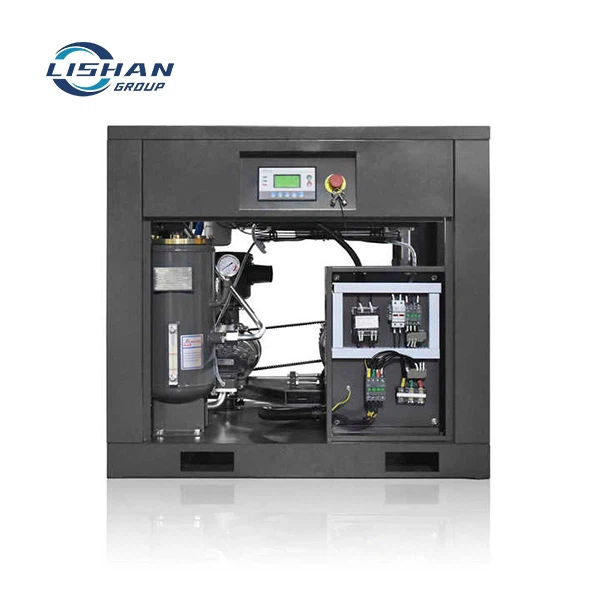

Bipolar Permanent Magnet Variable Frequency Air Compressor275A

Bipolar permanent magnet variable frequency screw air compressor is a high-efficiency and energy-saving compressed air equipment that combines two-stage compression, permanent magnet synchronous motor and variable frequency control technology, and is widely used in the industrial field.

The 200kW bipolar permanent magnet variable frequency screw air compressor is a high-end energy-saving equipment designed for ultra-large industrial gas demand. It integrates innovative two-stage compression technology, high-efficiency permanent magnet synchronous motor and intelligent variable frequency control system. It can provide 41m³/min of ultra-large flow compressed air, and the working pressure is stably maintained at 0.8MPa. It is an ideal power source solution in the heavy industry field.

Core Technical Advantages
1. High-efficiency two-stage compression system: The two-stage compression main engine is optimized and designed with German technology, equipped with an ultra-large capacity intercooler, and the compression efficiency is increased by more than 25% compared with the single stage. The innovative design ensures that the ultra-large flow air of 41m³/min can still be stably output at a working pressure of 0.8MPa, and the volumetric efficiency is as high as 99.5%.
2. Ultra-high-efficiency permanent magnet motor: Equipped with a 200kW energy efficiency grade permanent magnet synchronous motor, it uses special high-temperature resistant permanent magnet materials, with a full load efficiency of 98.5%, and the efficiency remains above 96.5% at 40% load.
3. Intelligent control system: Equipped with industrial-grade intelligent variable frequency drive system, pressure control accuracy ±0.005MPa. Built-in energy efficiency optimization algorithm, can automatically match the best operating mode.

Product Features
- The whole machine noise is controlled within 90dB (A), in line with heavy industrial environmental standards
- Equipped with a five-level precision filtration system, supporting cloud data analysis
- Key components use international top brands, with a design life of more than 150,000 hours

Typical Applications
Especially suitable for super-large industrial fields such as steel smelting, petrochemicals, shipbuilding, heavy machinery, etc. According to actual measurements, it can save more than 42% energy compared to traditional air compressors.
