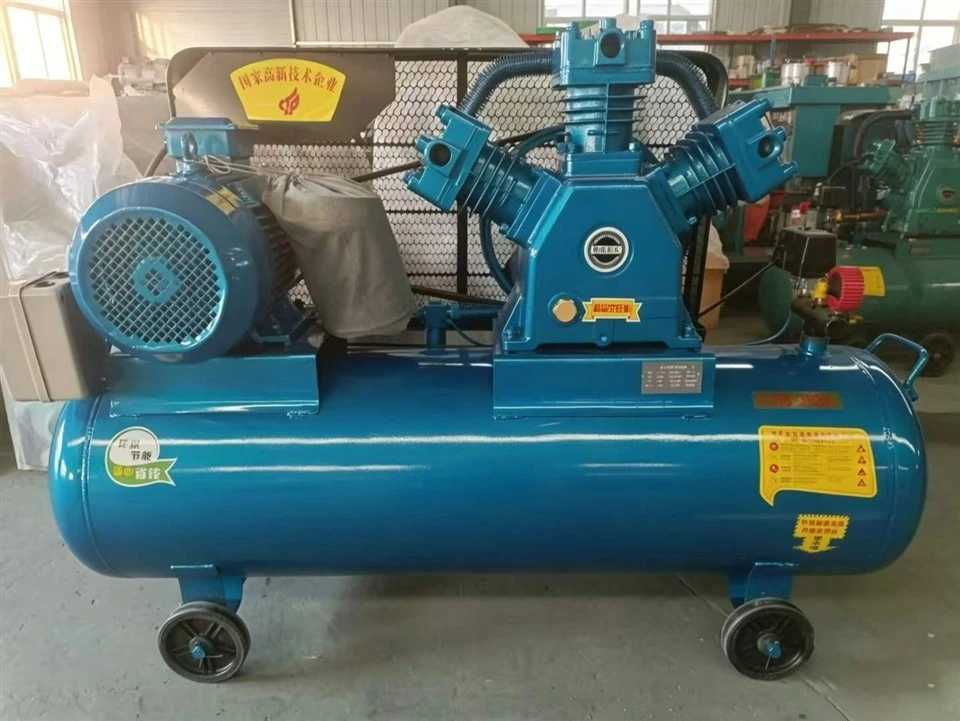

3KW Heavy‑duty Piston Air Compressor W‑0.36/8
This heavy‑duty 3kW three‑phase piston air compressor runs at 1140rpm, delivers 360L/min air flow under 8bar working pressure. Equipped with 90L large air tank and mobile wheels, it is built for continuous‑duty workshop operation, ideal for heavy‑use pneumatic tools, painting and repair work.
Send Inquiry
Product Introduction
- Model W‑0.36/8 heavy‑duty piston air compressor is engineered for medium‑load continuous working scenarios, powered by robust 3‑kilowatt three‑phase motor with stable 380V power input, delivering reliable power output for long‑hour industrial operation.
- Adopting three‑cylinder design of Φ65 bore, this unit achieves 360 L/min ample air displacement. The rated maximum working pressure reaches 8 bar, which can support multiple pneumatic devices running simultaneously. Operating speed is set at 1140 rpm, well‑balanced mechanical structure reduces vibration during operation and improves overall stability.
- It comes with a large‑volume 90‑liter air receiver tank. Big‑capacity tank effectively buffers air pressure swings, cuts down frequent motor cycling, stabilizes compressed‑air supply and protects motor service life. Fitted with sturdy mobile wheels, the whole machine can be conveniently shifted between different working stations. Net weight is 110kg, overall dimension 1190×450×940mm for reasonable footprint in workshop layout.
- Perfectly suited for auto repair shops, metal processing workshops, construction sites, painting work, pneumatic wrench, grinder, blow‑gun and other heavy‑duty pneumatic equipment. The piston compressor features solid build quality, straightforward maintenance and long working lifespan, a cost‑effective compressed‑air solution for moderate‑intensity industrial requirements.
| Item | Specification |
|---|---|
| Model | W‑0.36/8 |
| Power | 3KW |
| Voltage | 380V Three‑Phase |
| Cylinder dia × No. | Φ65×3 |
| Speed | 1140 rpm |
| Max pressure | 8 bar |
| Air Delivery | 360 L/min |
| Tank Volume | 90 L |
| Weight | 110 kg |
| Dimension(L×W×H) | 1190×450×940 mm |
