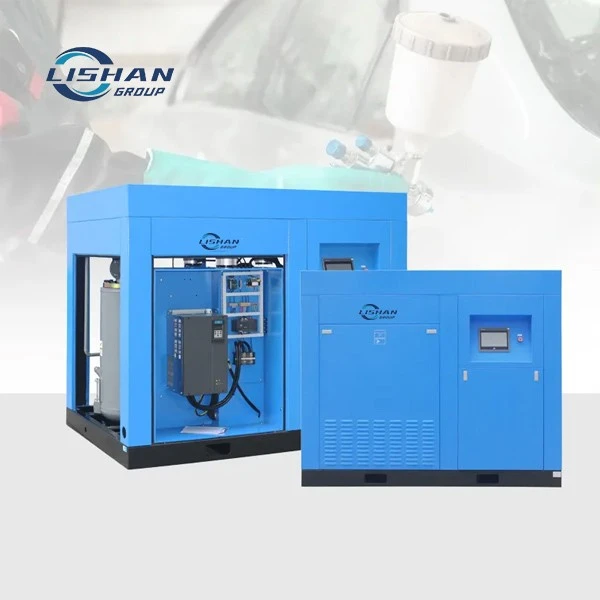

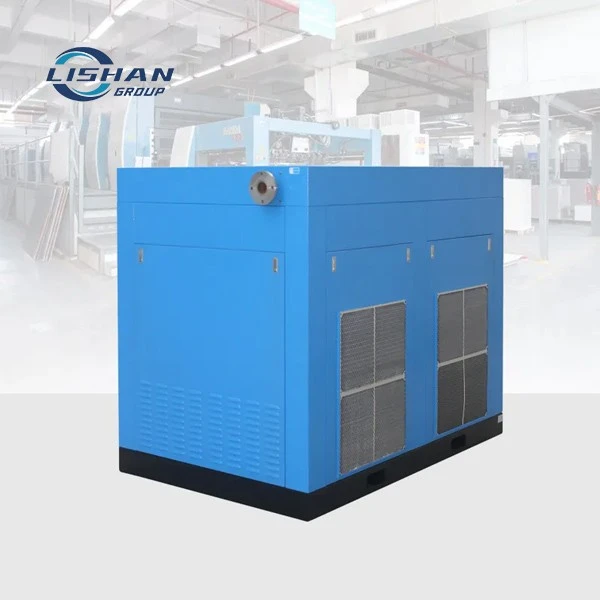

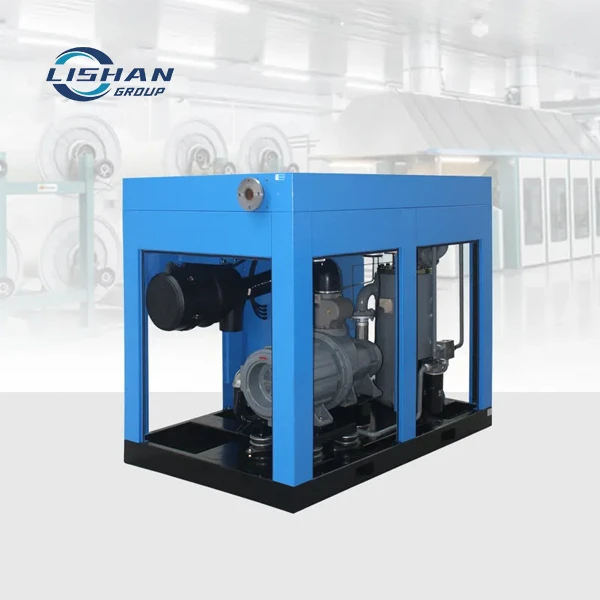

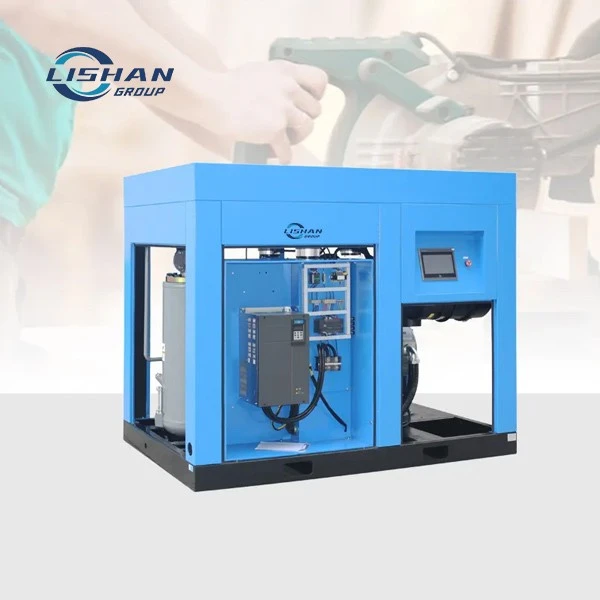

37KW 50HP Permanent Magnet VSD Screw Air Compressor
Our 37KW 50HP PM VSD screw air compressor is energy-saving industrial rotary screw compressor for continuous stable compressed air supply. Permanent magnet variable frequency start automatically adjusts motor speed according to actual air consumption, saving more power than fixed speed machines. Direct coupling structure reduces power loss, air cooling design easy to install and maintain.
Main Advantages
✅ Permanent magnet VSD control, good energy saving
✅ Direct coupling drive, high transmission efficiency, low failure rate
✅ Low noise 60±2dB(A), quiet operation
✅ Air cooling type, no water pipeline required
✅ Clean air output, residual oil ≤3ppm
✅ Multi voltage: 380V/220V/440V, 50Hz/60Hz for different markets
✅ IP23/IP55 motor protection, suitable for workshop environment
| Technical Parameter | Unit | Specification |
|---|---|---|
| Discharge Pressure | MPa | 0.8 |
| Free Air Delivery | m³/min | 6.3 |
| Motor Power | kW | 37 |
| Motor Rotation Speed | r/min | 3000 |
| Voltage / Frequency | V/Hz | 380V/220V/440V/50HZ/60HZ |
| Motor Protection Class / Insulation Class | - | IP23/IP55 |
| Driving Mode | - | Direct Coupling |
| Noise Level | dB(A) | 60±2 |
| Cooling Type | - | Air Cooled |
| Residual Oil Content in Discharge Air | ppm | ≤3 |
| Automatic Starting Mode | - | Variable Frequency Start |
| Air Outlet Size | - | 1" or DN25 |
| Compressed Air Outlet Temperature | ℃ | Ambient Temperature +15 |
