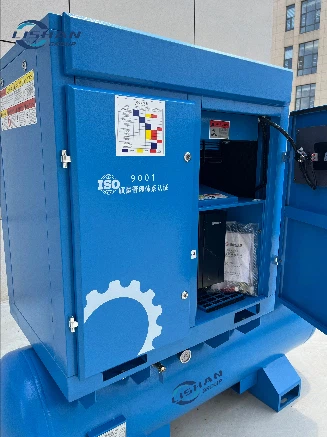

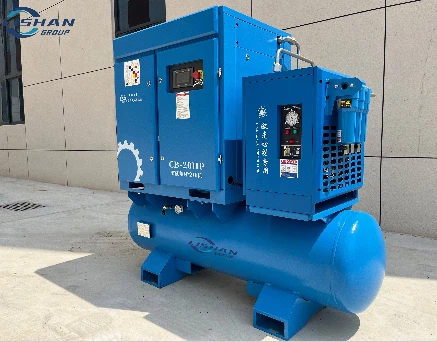

20 HP Energy-Saving Screw Air Compressor
Products Description
Applicable Scenarios
- Air Supply for Fiber Laser Cutting Machines
- Metalworking and Sheet Metal Fabrication Workshops
- Advertising Signage and Hardware Processing Industries
- Industrial environments with stringent requirements for compressed air purity and dryness
Product Advantages
Laser Cutting Specific Adaptation
Targeted optimization for pressure stability and drying effect, eliminating water, oil and impurity contamination, ensuring cutting accuracy and extending lens service life.
All-in-One Integrated Design

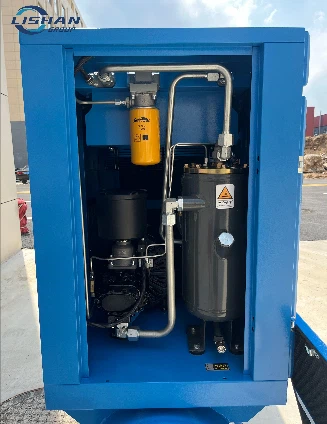

Integrated main unit + air receiver + refrigerated air dryer + filter, no need for additional accessories purchase, saving space and simplifying installation.
High Efficiency & Energy Saving
Equipped with high-quality screw main engine, featuring low energy consumption and high air output, reducing long-term operating costs.
Intelligent Control
Touch screen display + independent refrigerated dryer control panel, real-time monitoring of operating status, easy operation.
comparison of product parameters
| Parameter | Specification |
| Model | CB-20HP |
| Rated Power | 15 kW (20 HP) |
| Rated Air Displacement | Approx. 2.2–2.5 m³/min (Matched to specific model) |
| Rated capacity | 800/1000/1150/1275kg |
| Rated Discharge Pressure | 0.8–1.6 MPa (High-pressure version for laser cutting available as an option) |
| Air Receiver Capacity | 300 L / 500 L (Standard configuration) |
| Refrigerated Dryer Capacity | Matched to main unit displacement; Dew point ≤ 3°C |
| Filtration Precision | 0.01 μm (Oil, water, and dust removal) |
| Control Method | Intelligent PLC Touch Control + Independent Dryer Control |
| Cooling Method | Air-cooled |
| Power Supply | 380 V / 50 Hz (Other voltages available upon request) |
