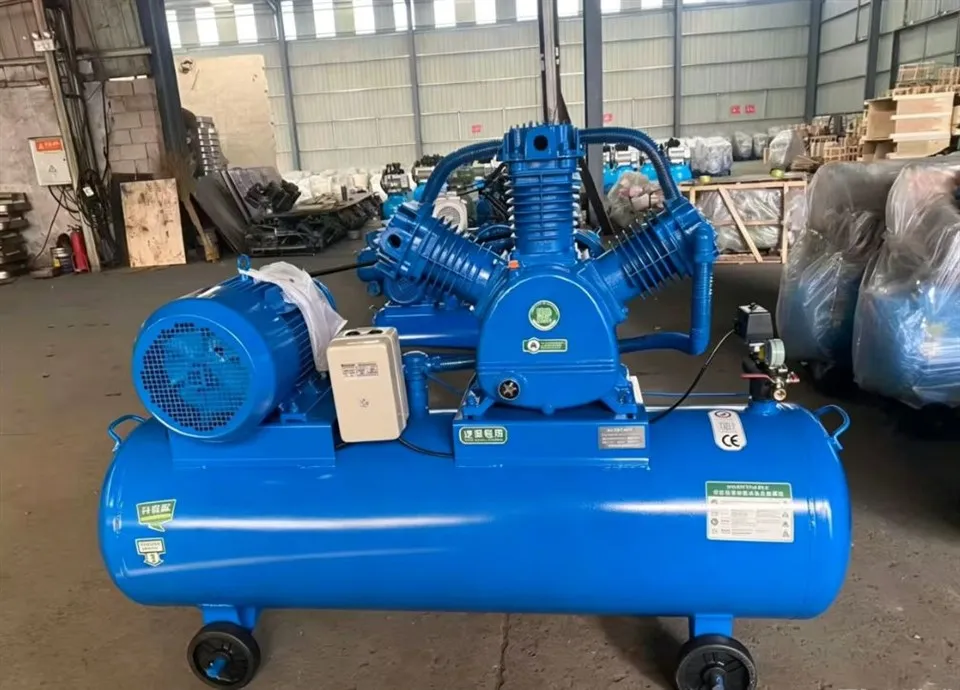

15HP Industrial Piston Air Compressor
一,Product Features & Advantages
Full Copper Wire Industrial Motor
100% pure copper winding motor, strong starting torque, low heat generation, long service life, stable continuous running for 24h industrial working. Customizable voltage for different countries' power grid (380V/220V/415V,50/60Hz).
Heavy-duty V-type 3-Cylinder Cast Iron Pump Head
Thickened cast iron cylinder block, wear-resistant piston ring, two-stage air compression design, fast air pumping speed, stable exhaust, durable for long-time heavy load working, not easy to damage under harsh workshop environmen
Thickened Pressure Air Tank
National standard high-pressure steel air tank, pressure resistance tested, anti-corrosion spray coating, stable air storage to avoid air pressure fluctuation, equipped with safety relief valve to ensure operational safety.
Auto Pressure Control System
Built-in pressure automatic switch, machine auto start when air pressure below setting value, auto stop when reach rated pressure, save power consumption and reduce manual operation cost.
Mobile & Widely Application
With solid rubber mobile wheels, easy to move between workshop sites; widely used in auto repair, sandblasting, painting, construction machinery, pneumatic tool matching, small factory pneumatic equipment supply.
After-sales & OEM Support
Factory direct supply, spare parts in stock; support OEM brand printing on tank & motor; 12 months warranty for core motor & pump head.
二,Basic Specification
| Basic Specification | Parameter |
| Model | V-1.6/8 Three-cylinder Piston Air Compressor |
| Rated Motor Power | 11KW / 15HP,380V/50Hz(可定制 220V/60Hz) |
| Free Air Delivery(FAD) | 1.6m³/min (56.5CFM) |
| Working Pressure | 0.8MPa / 8Bar / 116PSI(可选 1.0MPa 高压款) |
| Air Tank Capacity | 300L Horizontal Air Receiver |
| Rotate Speed | 880r/min |
| Net Weight | 590KG |
| Overall Dimension | 1780×720×1150mm |
| Cooling Method | Forced Air Cooling |
| Drive Type | Belt Driven |
| Configuration | Three Cylinder V-Type Compressor Head + Copper Wire Motor + Pressure Auto-switch + Mobile Wheels |
三,Application Fields
Auto repair shop / Vehicle tire inflation, Spray painting industry, Sandblasting & rust removal, Construction engineering, Hardware processing factory, Pneumatic machinery supporting, Small mining equipment air supply.
四,Quick Info for RFQ
MOQ：1 Unit
Lead time：3-7 working days for stock order
Loading port：Qingdao Port / Lianyungang Port
Packing：Standard export plastic film wrapping + wooden frame optional
