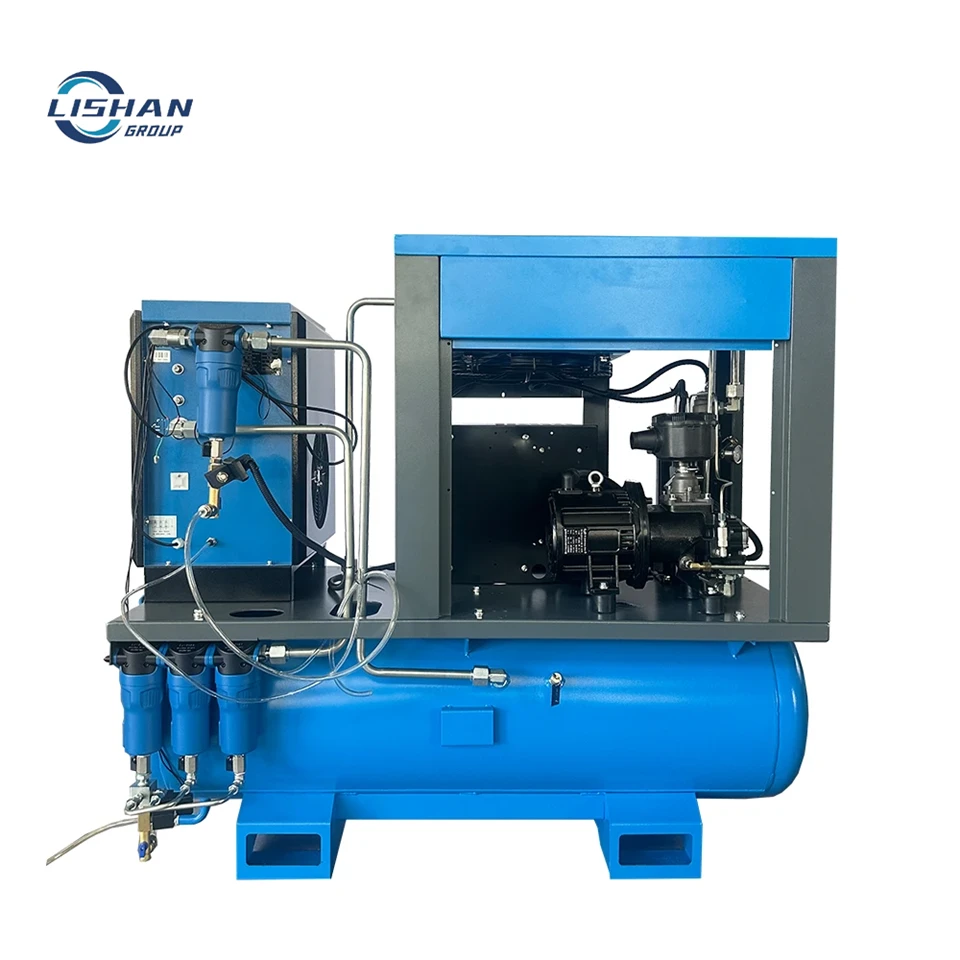

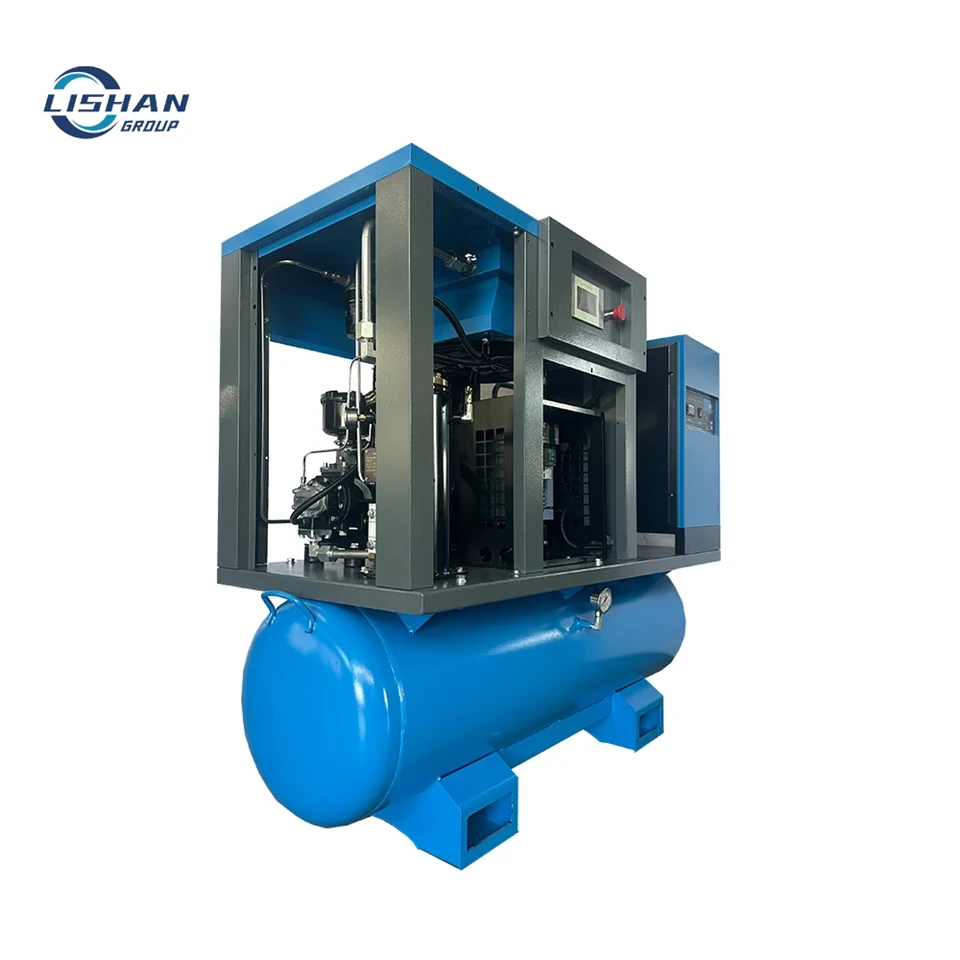

15HP All In One Permanent Magnet Screw Compressor
Product Overview
This 15A 11KW mobile four-in-one permanent magnet variable frequency screw air compressor integrates screw host, air storage tank, refrigerated dryer and precision filters into one movable unit. Adopt straight direct-coupled drive + IE4 energy-saving permanent magnet motor, intelligent frequency conversion automatically adjust air output according to real gas demand, save over 30% power compared with fixed speed models. Built-in moving wheels for flexible transfer, no extra supporting equipment required, one machine supplies dry, low-oil compressed air. Perfect for small processing workshops, mobile construction, hardware spraying & welding jobs.
Core Advantages
- 4-in-1 Movable Integrated Design Combine air tank, freeze dryer, dual-stage filters and screw compressor in one cabinet, equipped with moving casters for easy relocation. Save space, eliminate complicated pipeline matching, plug-and-play after delivery.
- Energy Saving Permanent Magnet VFD System 11kW high-efficiency PM synchronous motor, frequency soft start without grid impact, avoid empty load power waste, greatly cut daily electricity cost.
- Lossless Direct Drive Structure Cancel belt and gear transmission, fewer vulnerable spare parts, lower long-term maintenance expense.
- Ultra Low Noise & Stable Cooling Full silent enclosure, running noise only 57±2dB(A); air cooling radiator ensures stable operation under -5℃~45℃ environment.
- Ultra Clean Compressed Air Multi-stage oil separation system, residual oil of outlet air ≤3ppm, effectively protect CNC, spray gun and pneumatic tools from oil contamination.
Factory Customization & Flexible Order Source factory direct supply, accept 1 set small trial order; voltage, pressure, machine color & logo can be customized for overseas markets, export plywood moisture-proof packaging for sea transport.
Application Scenarios
Hardware machining, metal welding, paint spraying, small plastic processing, woodworking, mobile construction engineering, printing, packaging workshops.
Factory Service
Complete air compressor production line, all units pass strict factory test before shipment.
MOQ: Support small trial order
Custom voltage: 380V/415V/440V 50/60Hz for different regions
Packing: Export standard shockproof plywood case
Trade terms: FOB/Qingdao, CIF destination port available
| Item | Unit | Specification |
|---|---|---|
| Model | - | 15A Mobile 4-in-1 |
| Rated Motor Power | KW | 11 |
| Rated Exhaust Pressure | Mpa | 0.8 |
| Free Air Delivery | m³/min | 1.8 |
| Motor Rotating Speed | r/min | 3000 |
| Standard Power Supply | V/Hz | 380V/50Hz |
| Motor Protection Class | - | IP23 |
| Drive Mode | - | Direct Coupled Drive |
| Noise Level | dB(A) | 57±2 |
| Cooling Method | - | Air Cooling |
| Residual Oil Content of Outlet Air | ppm | ≤3 |
| Start Mode | - | VFD Variable Frequency Soft Start |
| Air Outlet Port | - | G1/2" |
| Compressed Air Outlet Temperature | ℃ | Ambient Temperature +15 |
| Overall Dimension(LWH) | mm | 1550*500*1090 |
| Net Weight | Kg | 235 |
